Model 8 Specifications
This is our full size loudspeaker based on Leonardo Speakers patent pending proprietary technology.
| Frequency range |
from 20Hz to 100KHz |
| Low frequencies |
ribbon-planar woofer 0.45 m² (surface) 1.42 m (height) |
| High frequencies |
ribbon mid-tweeter 15 mm (width) 1.42 m (height) |
| Ultrasonic frequencies |
piezo-polymer super-tweeter |
| Cross-over |
6+6 dB/oct @ 900 Hz Mundorf components |
| Internal cables |
White Gold Reference Cables |
| Weight |
140 Kg each |
| Size |

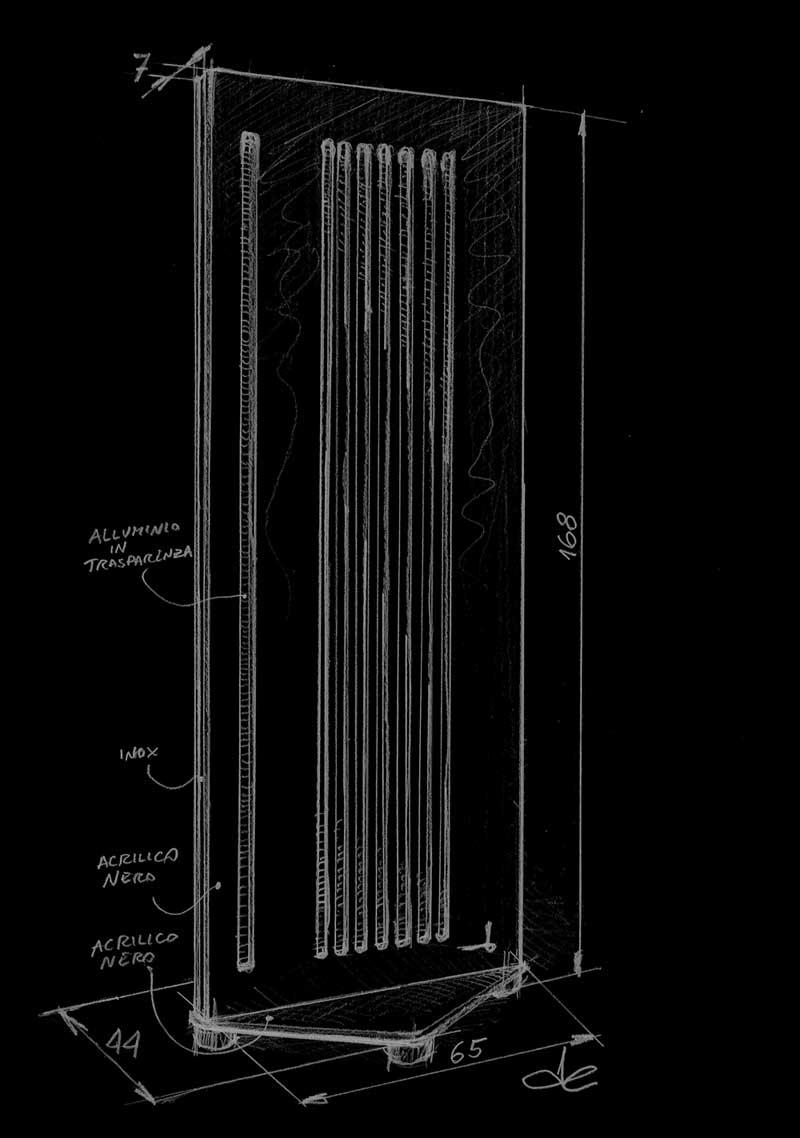

1.68m (height), 0.65m (width), 0.07m (depth of baffle), 0.44m (base depth) |
| Sensitivity |
93 dB effective in room |
| Recommended power |
5-250 W |
| Nominal impedance |
4 Ohm |
Finish
Our preferred finish is glossy black piano in solid poly-methacrylate,
this is ideal for a long lasting quality. On request other colors are
available and also unique decorated versions.
Quality
Each pair of speakers is made by hand and tested for a minimum of 48h
to give an initial break-in. After testing it is carefully checked,
signed and packaged in a highly protective shipping wooden crate.
