ORINDA ACOUSTICS

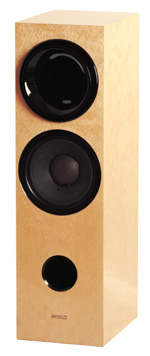

Loudspeaker Model: H2W10

Description: 2-Way system with bass reflex woofer and horn-loaded mid and high frequency driver.

Frequency Response: 30 to 20,000 Hz

Sensitivity: 91 dB

Power Handling: 300 w program

Impedance: 8 ohm

Mid & High Freq. Horn: 9.5” (24 cm) and weighing 15 lbs (6.8 Kg). Original design with innovative material.

Mid & High Freq. Driver: Compression driver with 3” voice coil, 76.2 mm special aluminum alloy diaphragm, 2” exit.

Woofer: 10” bass reflex design. 4” voice coil, 300 watts power handling capability.

Crossover: Special design using the best commercially available components known for their fast speed and long term reliability. Unique design to balance the speed among drivers. Fully shielded and grounded.

Adjustments: Mid/High Frequency: 2 dB levels in 5 steps.

Internal Wiring: Patent pending Time-Accurate cable design. Fully shielded and grounded.

Binding Posts: 5 total including one for grounding. Bi-wire and bi-amp connections possible. Unique design using the posts as clips only and not for conducting. Conductors are brought to the outside for direct contact with speaker wire terminals. Binding posts are extra large, widely spaced for ease of connecting; and gold plated for beauty and durability.

Cabinet: Highest quality MDF with thickness ranging from 1” to 3”.

Finish: Black piano finish on all six sides. Wood veneer options available.

Dimensions: Overall 42” H x 12” W x 16” D. (107 cm H x 30 cm W x 41 cm D)

Weight: Approx. 155 lbs (70.5 Kg).

Matching Center: Model H2W10C. Same drivers and internal cabinet volume as H2W10 for a seamless sound stage in home theater surround sound reproduction. Can be placed vertically or horizontally. Same excellent performance when used as standard speakers where a lower cabinet height is desired.

Dimensions: 36.5” H x 12” W x 15” D (93 cm H x 30 cm W x 38 cm D).

Weight: Approx. 135 lbs. (61 Kg).

Remarks: This loudspeaker design is based on the same Time-Accurate cable design principle. Only the fastest, most accurate and technically advanced drivers of the highest quality are chosen. Besides being able to reproduce recorded material with the most accurate and realistic sound, this loudspeaker, although compact in design, has the rare capability of delivering truly deep bass with incomparable dynamics, at realistic listening levels, and with higher than average sensitivity.

List Price: H2W10: US$8,800 a pair (Black piano finish).

US$9,600 a pair (Bird’s Eye Maple veneer)
H2W10C: US$4,400 each (Black piano finish).

US$4,800 each (Bird’s Eye Maple veneer)

Made in U.S.A.
