Specifications:

• Large torodial transformer 1800 VA
• WBT speaker terminals dual set for each channel.
• A total of 160000 uF capacitance in power supply
• 1x250W 8ohm
• Thd less than 0.1% 20-20000hz
• Input impedance bal 20 KOhm
• Input impedance unbal 50 KOhm
• Output impedance 0,01 Ohm
• Current output 68 A
• Distortion less than 0,1%
• Bandwidth DC- 100KHZ +/- 0,2 dB

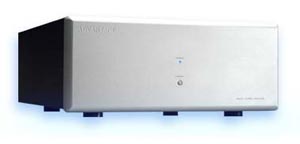

The S250 is a true balanced amplifier with separate Amplification
circuits for positive and negative phase signals.

Each of these stages are single ended stages pure class A except the
output devices, working push pull Voltage gain in a single device.
Eight high power mosfet per channel. Current feedback topology. geovisit();
