PRODUCTS : LOUDSPEAKERS : Merak Center Channel
![](merak.jpg)

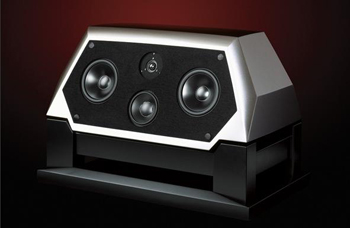

Merak Center Channel
The Merak Center Channel is the perfect companion for any of our loudspeakers, but its strongest visual connection is to the Merak II and Antares. Bass and midrange are provided by custom Audiotechnology units, and high frequencies are handled by the Esotar tweeter. The dynamics, articulation, and tonal character of this center channel provide a coherent match with our other loudspeakers, and because of its cabinet’s composite construction, it has virtually no energy storage. The importance of exceptionally clean, natural midrange and high frequency registers coupled to a robust midbass cannot be understated for a center channel due to the demanding requirements of this application.
Woofer |
(2) 7.25” Audiotechnology |
Midrange |
5.25” Audiotechnology |
Tweeter |
1” Dynaudio Esotar |
Internal Wiring |
Transparent Audio |
|
|
Height |
22.63” (variable” |
Width |
35” (base) |
Depth |
20.77” (base) |
Weight |
180 lbs. each |
Frequency Response |
40Hz - 20KHz, -3db |
Nominal Impedance |
4 ohms |
Sensitivity |
8 dB SPL/2.83 v |
Min. Amplifier Power |
50 watts |
