THE PQS-100

The PQS-100 is a compact, full range loudspeaker intended for use in high-end home theatre systems, where its exceptional resolution and dynamics will greatly add to the enjoyment of movies and music videos. Its single carbon fibre cone DDD driver produces detailed and realistic stereo images, which can be enjoyed by many listeners from a wide range of positions within the room. This avoids the “one seat sweet spot” stereo image that most conventional loudspeakers produce.

The PQS-100 is designed to be wall-mounted in order to minimise its intrusion into the room and so save space. This also makes it ideal for use in high-end stereo systems in smaller rooms. In addition, it is well suited for use in galleries, shops and other public places where very high quality sound is required and the sound source must be unobtrusive.

The PQS-100 may be used with the matching PQS-Sub subwoofer. This forms a very compact system with a combined frequency range of 45Hz to 24,000Hz.




Easy Location

The PQS-100 can be quickly and easily attached to the wall with a single screw fitted mount.

A special mounting plate is available to allow the PQS-100 and PQS-Sub to be mounted neatly together on the wall as shown.

Despite its compact size, this system is capable of driving even quite large rooms to high levels, whilst preserving the characteristic German Physiks open and relaxed sound and at the same time producing good levels of well-controlled low bass.

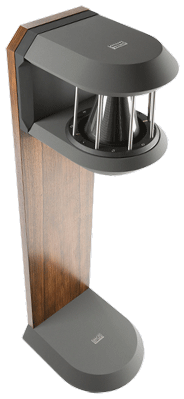

The PQS-100 may also be mounted on the PQS-Plus stands, which allow additional flexibility over the positioning of the loudspeaker. A shorter version of the PQS-Plus stand is available to special order. Please contact German Physiks for details.


5.1 Surround System Possibilities

The table below shows a suggested configuration for a 5.1 surround system using the PQS 100.


Room Size m² Main Centre Rear Subwoofer
10 - 60
PQS-100 PQS-100 PQS-100 PQS-Sub x 2




The DDD Driver

The DDD driver is used on all German Physiks loudspeakers and the same quality of driver is used on all models from our entry level product, to the top of the range Gaudi. This revolutionary driver gives the same very important advantages to all German Physiks designs and is what sets them apart from our competitors.

Its very low moving mass enables it to operate linearly over an extremely wide frequency range. The carbon fibre DDD driver used on the PQS-100 covers the entire range from 120Hz to 24,000Hz. In a conventional design, this range would be covered by two or even three different types of driver and most importantly there would be a cross over point in the mid-range, the area where our hearing is most sensitive. The DDD driver’s wide operating range allows this vital region to be kept free from the level and phase anomalies that multiple drivers and a necessarily more complex crossover would create. This enables the PQS-100, like all German Physiks loudspeakers, to produce very accurate and realistic stereo images.

The DDD driver is omnidirectional, so the excellent stereo images it produces can be enjoyed from a wide range of listening positions in the room. This gives more flexibility in where you position the loudspeaker and where you sit. It is also an ideal property in a loudspeaker intended for use in home theatre systems, where there may be several listeners.

The drivers in a conventional loudspeaker beam the sound, rather than radiating it evenly around the loudspeaker. This beaming effect becomes more pronounced as the frequency increases. Consequently, you generally only obtain the correct tonal balance when seated in a narrow range of positions in the room. By contrast, the DDD driver’s omnidirectional radiation pattern ensures that the tonal balance of the music is much more even throughout the room.

Modern movie soundtracks are very detailed. In many cases not only will there be a large orchestra that on its own covers a very wide frequency and dynamic range, but there will be complex sound effects sections with a large number of elements, as well as several voice tracks. The DDD driver’s exceptional speed and low distortion enable it to clearly resolve all the elements in even the most complex soundtrack and so provide a much more enjoyable and exciting viewing experience.

The DDD driver is phase linear across its operating range ensuring that the timbral character of each musical instrument is reproduced with great accuracy. This also makes sound effects more believable and is particularly noticeable on complex and very dynamic effects.


Low Cabinet Colouration

The PQS-100 solves the problem of cabinet colouration by having to all intents and purposes no cabinet. The top, bottom and back plates are machined from single pieces of solid MDF and are inherently very stiff and non-resonant.


Attractively Finished Cabinets

The PQS-100 is attractively finished in a two tone black and grey Nextel colour scheme that will look at home in almost any surroundings.


The PQS-100 Specifications

With Carbon Fibre DDD Driver


Impedance

7.5 ohms at 2,600Hz


Frequency response

120Hz – 24,000Hz

Power handling
   Nominal
Short term
90W
180W peak

Amplification required
Minimum 40W/4 ohms

Crossover slope
6dB/octave electronic & 18dB/octave acoustic

Sensitivity
84dB for 1W at 1m

Operating principle

Full range loudspeaker with 360° surround radiation using the DDD driver


Input connectors
1 set of binding posts

Output connectors (Subwoofer loop)
1 set of binding posts

Driver
1 x Carbon fibre DDD driver

Accessories
PQS-Plus Stands (sold separately)
Wall mounting plate (sold separately)

Dimensions
267mm W x 275mm H x 312mm D
10.5" W x 10.8" H x 12.3" D

Weight
11.0kg
24.2lbs

Warranty
5 years
