Available Standard Versions

Vario Basic 40-100
Vario Basic 40-300
 Vario Basic 40-600*

Vario Basic 60-100
 Vario Basic 60-300
 Vario Basic 60-600*

Vario Basic 90-100
Vario Basic 90-300
 Vario Basic 90-600*
Performance Specifications
Isolation technology: Halcyonics active vibration isolation technology based on piezoelectric type acceleration pickup, fast signal processing and electro-dynamic force transducers.
Control electronics: External control unit with sensor and actuator LEDs, corresponding to force directions
Force directions:
 Active compensation in all six degrees of freedom
Isolation performance: > 5 Hz = 25 dB (94.4%);
> 10 Hz = 38 dB (98.75%)		 > 5 Hz = 25 dB (94.4%);
> 10 Hz = 35 dB (98.2%)		 > 5 Hz = 25 dB (94.4%);
> 10 Hz = 35 dB (98.2%)
Active bandwidth: 0.7 – 200 Hz** 1.0 – 200 Hz**
 1.0 – 200 Hz**
Settling time: 100 ms 300 ms
 300 ms
Max. correction forces: Vertical ± 8 N; horizontal ± 4 N Vertical ± 8 N; horizontal ± 4 N
 Vertical ± 16 N; horizontal ± 8 N
Load capacity: 0 – 100 kg (0 – 220 lbs) 0 – 300 kg (0 – 660 lbs)
 0 – 600 kg (0 – 1,320 lbs)
Other Specifications

Dimensions:

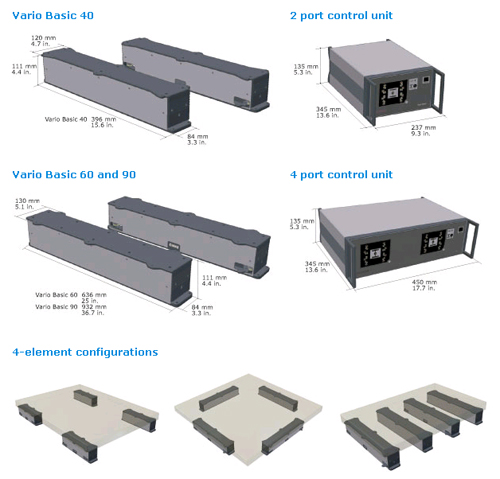

 See figure 2
Weight: Vario Basic 40: 6,8 kg (15 lbs) per isolation element
Vario Basic 60: 8,6 kg (19 lbs) per isolation element
Vario Basic 90: 10,4 kg (23 lbs) per isolation element
Vario Basic control unit: 4,5 kg (10 lbs)
Maximum compensation level: 550 µm/s at 6 Hz and 60 kg (132 lbs)*** 500 µm/s at 8 Hz and 150 kg (330 lbs)***
 500 µm/s at 8 Hz and 300 kg (660 lbs)***
Interface: BNC analog diagnostic output – 50 Ohms
Environmental and Operational Requirements
Electrical voltage: 100 – 250 V/47 – 63 Hz
Power consumption: Typically 10-20 W; max. 50 W
Operating temperature: 10 – 40°C (50 – 104 F)
Relative humidity:
 0 – 60%
Operating altitude: < 2500 m (8100 ft)
Certification
Electrical Safety: CE certificated according to directive 89/336/EC
EMC: CE certificated according to directive 73/23/EEC
* Consists of four isolation elements and a 4 port control unit.
** Floating table top is supported by steel springs; low-pass characteristics of spring-mass combination dominates the dynamic behaviour above 200 Hz.
*** The maximum compensation level depends on several conditions, such as payload, frequency, load distribution and height of the payload as well as the distance between the isolation elements. For that reason this value should be considered as an estimation.
